Usage

Installation

To use imgann, you could install using PyPi :

(.venv) $ pip install imgann

Another option is to directly build the library from codebase :

% clone codebase
$ git clone https://github.com/nipdep/imgann.git
% for usual usage
$ pip install -e .
% for development
$ pip install -e .[dev]

Functionalities

Annotated Dataset Preview

It’s import to make sure downloaded dataset image annotations are in proper / precise manner, And after all it’s good to check the resulting annotations after custom annotation type conversion or annotation conversion provided by this library.

The following view function work in both python and IPython kernels. but ew encourage you to use in interactive python environment such as Jupyter notebooks. Also, dataset and annotation file paths could be in either relative or absolute formats. This function generates set or pseudo random images with their bounding + label on. Also, you could define resulting image shape and the seed to get consistent image outputs.

Note

The image-shape does not change the aspect ratio of the images in the dataset at any point. More explicitly, For example let say the images shape of original dataset is (246, 246); means the aspect ration of 1:1. So, even you have input image_shape=(400, 500) the resulting image in the shape (400,400) to preserve original aspect ratio.

Code Example:

from imgann import Sample
Sample.show_samples(data_path='../data/Hard Hat Sample.v5.voc/test',
                    ann_path='../data/Hard Hat Sample.v5.voc/test',
                    num_of_samples=5,
                    ann_type='voc',
                    seed=123,
                    image_shape=[500, 500])

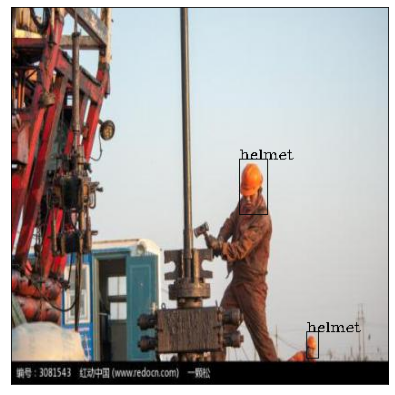

Sample Output

Note

For further instruction follow to API page.

Convert Annotation Format

The library support converting between PascalVOC, COCO and CSV. In General, all the functions take parameter as image dataset directory and annotation file directory.

COCO to PascalVOC

Note

the parameter ‘center’ defines the bounding box define formats;

[X_center, Y_center, Width, Heigth] < if center=True

[X_min, Y_min, Width, Heigth] < if center=False. i.e. roboflow annotated .json files saved in this format.

Code Example:

from imgann import Convertor
Convertor.coco2voc(dataset_dir='../data/Hard Hat Sample.v5i.coco/test',
                   coco_ann_dir='../data/Hard Hat Sample.v5i.coco/test/_annotations.coco.json',
                   save_dir='../data/coco2voc')

COCO to CSV

Note

The library supports two CSV formats as the output.

The first format is directly applicable with any object detection work. hence the result contains bounding boxes.

In the second format it contains only number of distinct class contains in each image; which format directly supports to multi-class multi-label classification task.

Code Example:

from imgann import Convertor
Convertor.coco2csv(dataset_dir='../data/Hard Hat Sample.v5i.coco/test',
                   coco_ann_dir='../data/Hard Hat Sample.v5i.coco/test/_annotations.coco.json',
                   save_dir='../data/coco2csv.csv')

COCO to Yolo

Code Example:

from imgann import Convertor
Convertor.coco2yolo(dataset_dir='../data/Hard Hat Sample.v5i.coco/test',
                    coco_ann_dir='../data/Hard Hat Sample.v5i.coco/test/_annotations.coco.json',
                    save_dir='../data/coco2yolo')

PascalVOC to COCO

Code Example:

from imgann import Convertor
Convertor.voc2coco(dataset_dir='../data/Hard Hat Sample.v5i.coco/test',
                   voc_ann_dir='../data/coco2voc',
                   save_dir='../data/voc2coco.json')

PascalVOC to CSV

Code Example:

from imgann import Convertor
Convertor.voc2csv(dataset_dir='../data/Hard Hat Sample.v5.voc/test',
                  voc_ann_dir='../data/Hard Hat Sample.v5.voc/test',
                  save_dir='../data/voc2csv.csv')

PascalVOC to Yolo

Code Example:

from imgann import Convertor
Convertor.voc2yolo(dataset_dir='../data/Hard Hat Sample.v5.voc/test',
                   voc_ann_dir='../data/Hard Hat Sample.v5.voc/test',
                   save_dir='../data/voc2yolo')

CSV to COCO

Code Example:

from imgann import Convertor
Convertor.csv2coco(dataset_dir='../data/Hard Hat Sample.v5i.tensorflow/test/',
                   csv_ann_dir='../data/Hard Hat Sample.v5i.tensorflow/test/_annotations.csv',
                   save_dir='../data/csv2coco.json')

CSV to Yolo

Code Example:

from imgann import Convertor
Convertor.csv2yolo(dataset_dir='../data/Hard Hat Sample.v5i.tensorflow/test',
                   csv_ann_dir='../data/Hard Hat Sample.v5i.tensorflow/test/_annotations.csv',
                   save_dir='../data/csv2yolo')

CSV to PascalVOC

Code Example:

from imgann import Convertor
Convertor.csv2voc(dataset_dir='../data/Hard Hat Sample.v5i.tensorflow/test',
                  csv_ann_dir='../data/Hard Hat Sample.v5i.tensorflow/test/_annotations.csv',
                  save_dir='../data/csv2voc')

CSV Object Detection to Multi-class Multi-label

Code Example:

from imgann import Convertor
Convertor.csv2multilabel(csv_dir='../data/Hard Hat Sample.v5i.tensorflow/test/_annotations.csv',
                         save_dir='../data/csv2m.csv')

Note

For more info on functional parameters, acceptable input formats and output format refer API pages.

Yolo to COCO

Code Example:

Convertor.yolo2coco(dataset_dir='../data/Hard Hat Sample.v5i.darknet/test',
                    yolo_ann_dir='../data/Hard Hat Sample.v5i.darknet/test',
                    save_dir='../data/yolo2coco.json',
                    center=True)

Yolo to PascalVOC

Code Example:

Convertor.yolo2voc(dataset_dir='../data/Hard Hat Sample.v5i.darknet/test',
                   yolo_ann_dir='../data/Hard Hat Sample.v5i.darknet/test',
                   save_dir='../data/yolo2voc')

Yolo to CSV

Code Example:

Convertor.yolo2csv(dataset_dir='../data/Hard Hat Sample.v5i.darknet/test',
                   yolo_ann_dir='../data/Hard Hat Sample.v5i.darknet/test',
                   save_dir='../data/yolo2csv.csv')

Describe Image Dataset

Get summary of stats of the input datasets and annotation is crucial, and can be considered as the EDA in object detection project.

The library supports summary generation under two levels.

Image Dataset Alone

This function analyse only images under the dataset. Dataset could combination set of folders.

Code Example:

from imgann import Sample
Sample.describe_data('../data/Hard Hat Sample.v5i.coco')

Sample Output:

INFO:imgann.sample:
                              IMAGE DATA SUMMARY
================================================================================
number of images    : 240
number of folders   : 3
folder image counts :
                  > test  : 10
                  > train : 210
                  > valid : 20
================================================================================

Note

The Folder structure depth only supported down to single folder.

from imgann import Sample
Sample.describe_data('../data/Hard Hat Sample.v5i.coco/train')

Sample Output:

INFO:imgann.sample:
                              IMAGE DATA SUMMARY
================================================================================
number of images    : 210
number of folders   : 1
folder image counts :
                  > train : 210
================================================================================

Annotated Dataset

This function analyse the annotation stats in addition to the image stats generates in the above function.

Note

In the function also, supports the two annotation formats under COCO as stated under PascalVOC to COCO function.

from imgann import Sample
Sample.describe_ann(data_path='../data/Hard Hat Sample.v5i.coco/train',
                    ann_path='../data/Hard Hat Sample.v5i.coco/train/_annotations.coco.json',
                    ann_type='coco')

Sample Output:

INFO:imgann.sample:
                           IMAGE ANNOTATION SUMMARY
================================================================================
number of images         : 210
folder image counts      :
                        > train : 210
number of image sizes    : 1
image_size               : 416 X 416
number of object classes : 4
object classes           : Workers | head | helmet | person
number of objects        : 760
class object count       :
                        > head   : 186
                        > helmet : 553
                        > person : 21
================================================================================
